Sensor Based Tanks Automation Solution with Motor Control Capabilities

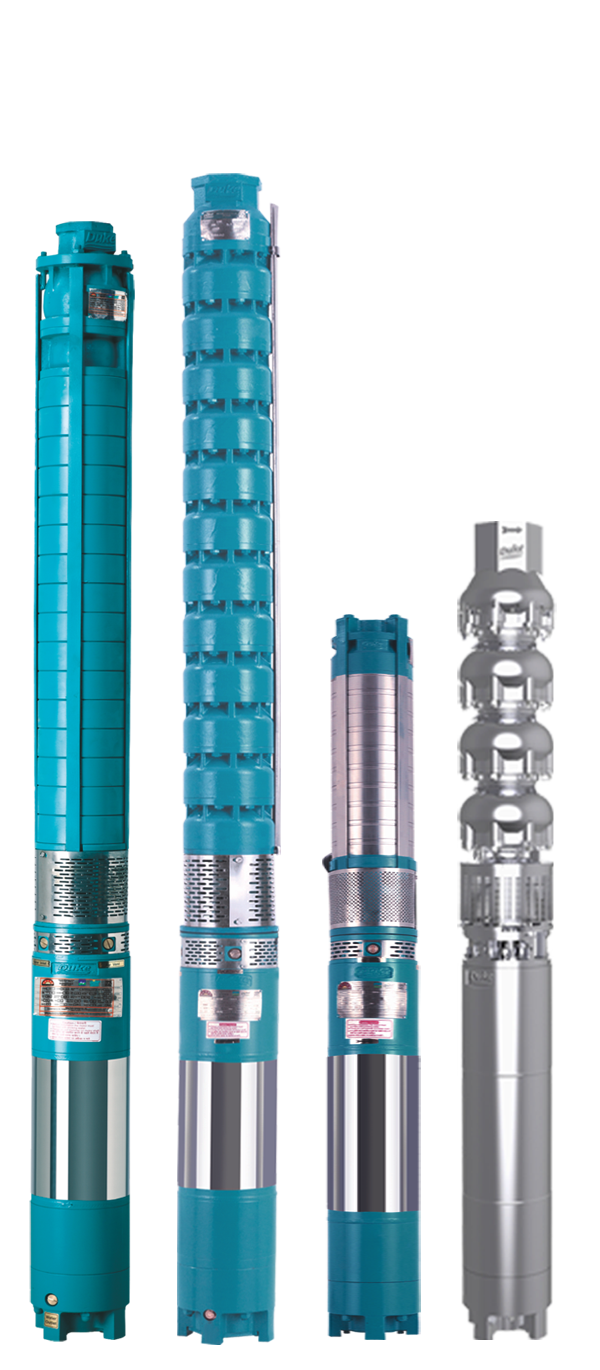

Submersible Pump

Easy Water, Every Day

Peace of Mind with Digipump. Auto-Fill. Auto-Chill.

Product 1
Begin Your Journey

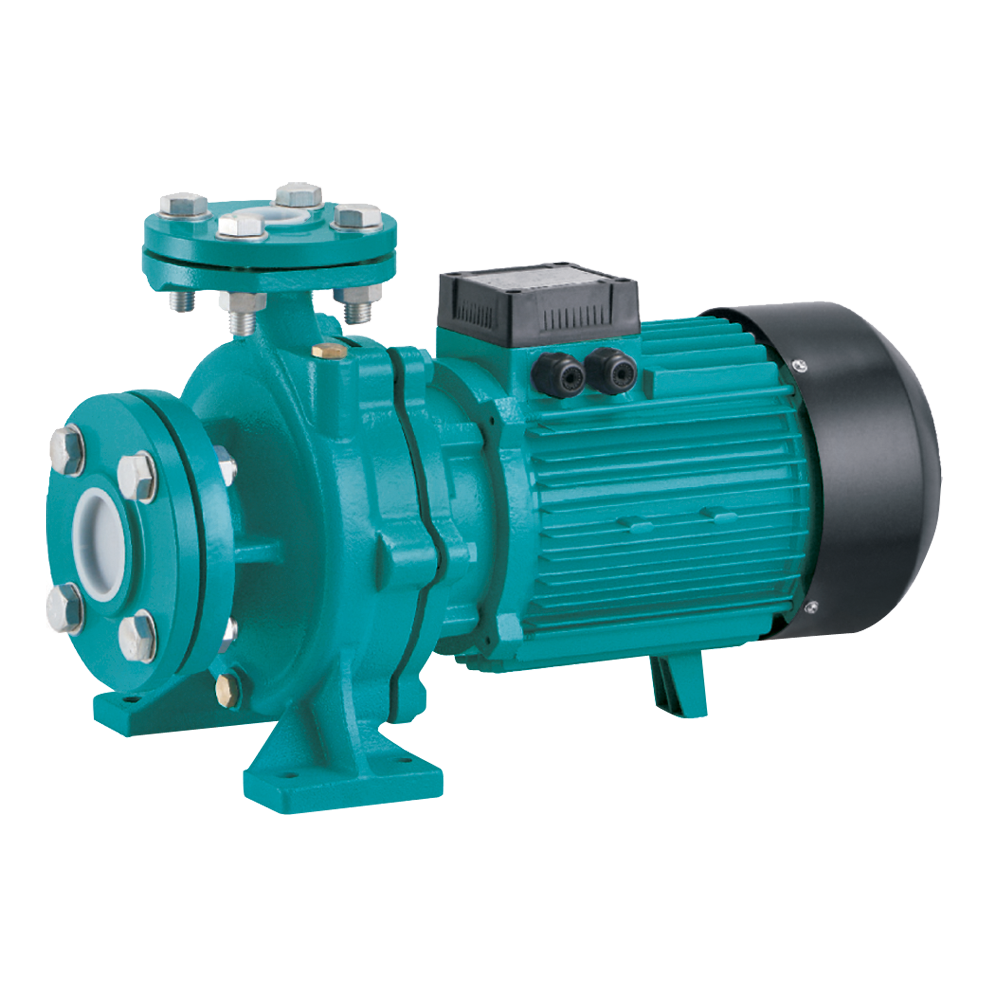

Monoblock Pump

Problem with existing wireless tank level alarm systems

Water Worries? Not Anymore

Turning the water pump on and off can be a daily hassle. Sometimes you forget, and water overflows; other times, you forget, and the tank is empty. This common problem wastes water, causes stress, and consumes your time and peace of mind every day.

Existing tank level alarm system (wired or wireless) fails to take action. They often create more panic with each alarm and, at times, can lead to accidents, when users try to quickly start or stop the water pump motor.

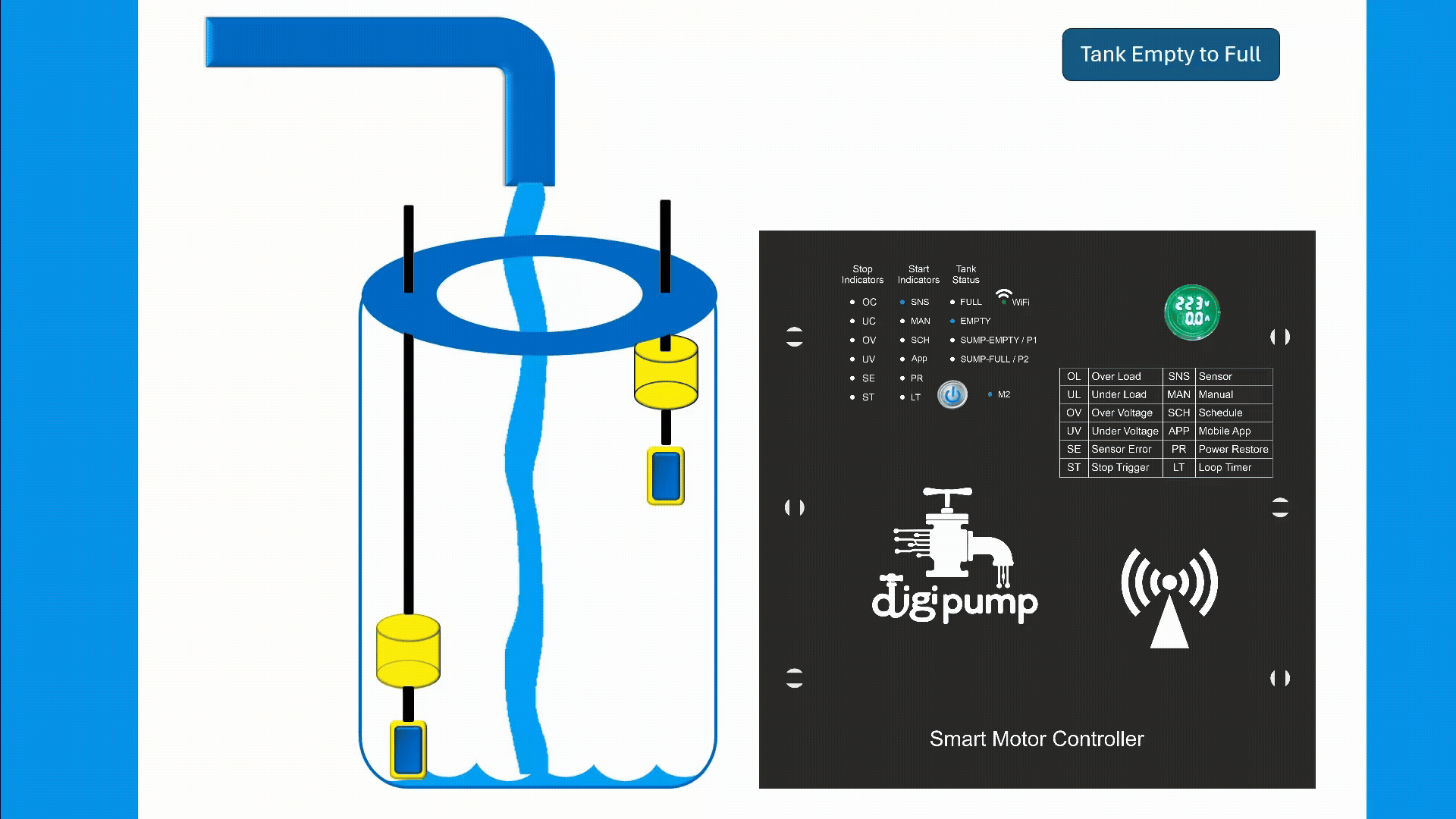

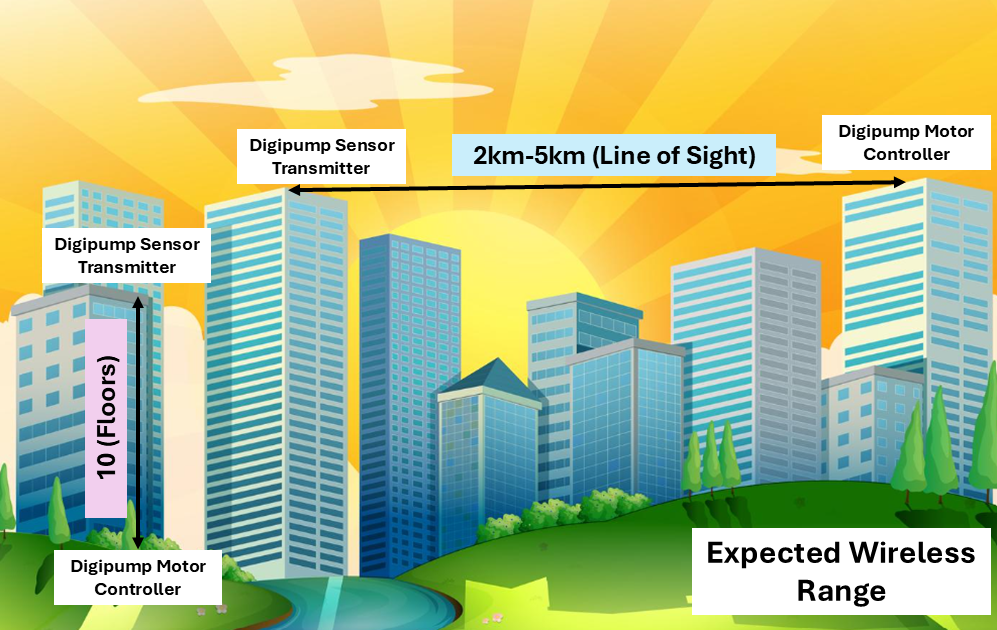

Long Range Wireless tank automation system with empty and full tank detection

Sensors (Wired vs Wireless)

To meet diverse customer needs, we’ve developed multiple wired and wireless connectivity solutions that offer long-range communication from the tank sensor to the controller panel.

  • Wired connectivity for overhead and sump tank sensors
  • Wireless connectivity for overhead and sump tank sensors
  • Wireless connectivity for overhead + Wired connectivity for Sump Tank sensors
IOT based app notification for water tank level changes

Anytime Anywhere Control

Digipump is powered by Smarteefi IoT platform. It can connect to the internet if you have WiFi in your home using Smarteefi Mobie App.

Does automation work without wifi or internet?

Absolutely. The complete automation works without any internet connection or Wifi, However connecting it to the internet can provide users with the following additional features

IOT Features

  • Users can check sensor and pump status anytime from anywhere
  • Users will get app notification when pump starts or stops (including trigger details)
  • Users can add, delete, or change time-based schedules to start or stop the pump, if required.
  • Users can turn On/Off the pump from the mobile app anytime from anywhere
  • Users can change sensor settings (enable/disable) anytime from anywhere
  • Users can view daily energy consumption statistics anytime
  • Users can set up a countdown timer if needed

Find the Perfect Match for Your Pump

Every home and water source is unique. Whether you rely on municipal water at specified time slots, a submersible pump for groundwater, or a combination of both, Digipump understands this! That's why we offer a special range of devices, each designed to perfectly manage your specific water needs with ease. Find the right Digipump Motor Controller for your pump below:

Digipump Product Selection Tool

1. Please Select Your Use Case:

2. Select Sensor Type:

2. Select Motor Type:

3. Select Sensor Type:

3. Select Sensor Type:

4. Select Motor Power:

3. Select Sensor Type:

Confirmation:

Usually monoblock motors are used in sump tank. Are you sure you are using a submersible motor from sump tank to overhead tank?

4. Select Sensor Type:

5. Select Motor Power:

Confirmation for Primary Motor (Motor-1):

Your primary motor (sump to overhead tank) must be a monoblock motor for our dual motor solutions.

3. Select Secondary Motor (Motor-2) Type:

4. Select Secondary Motor (Motor-2) Power:

Features that helps next generation for saving water and saving earth

Sowing The Seeds of Tomorrow

Simplifying Smart Living for All

Digipump brings cutting-edge technology effortlessly into every home, making modern living accessible and intuitive for everyone, not just tech enthusiasts.

Torchbearer of Water Management's Future

More than just a device, Digipump is a vision for holistic water automation. We aim to be your steadfast companion for all water needs, ensuring your supply is always abundant.

Effortless Integration

As simple as planting a seed, our products are designed for intuitive installation and use. Anyone can embrace smart water management without a steep learning curve.

Unwavering Reliability & Durability

Crafted with the care of a master artisan, Digipump products are built to last, offering performance and the lasting comfort of an uninterrupted water supply.

Dedicated to Your Satisfaction

Our journey with you doesn't end at the sale. Like a loyal friend, we offer exceptional post-sale support, ensuring you always have a helping hand when you need it.

Sustainable Impact: A Promise to Our Earth

Beyond convenience, Digipump is a silent promise to our planet. By preventing water wastage, we nurture a more sustainable future for every home in India and beyond.

Benifits of Water Tank Automations

Benefits: A Harvest of Happiness

  • No More Overflow! Like a watchful sprite, Digipump ensures not a single drop is wasted.
  • Automatic Tank Fills. Your tank, always full, effortlessly, like magic.
  • Save Water, Save Money, Save Earth. A triple blessing for your home and our shared world.
  • Easy Install ABCD (Any body can do). So simple, it feels like it was always meant to be there.

Our Core Promise: With Digipump, your water worries vanish. We promise effortless water management, guaranteed savings, and absolute peace of mind.

Smart Motor Controller for Dual Motors (Monoblock for Sump Tank + Submersible for Earth Water)

Dual Motor Control Water Pump Wireless Sensor Starter Panel

Choose This If You:

  • Use 2 Water Pumps to automate your water needs
    • Use a monoblock pump to fill overhead tank from sump tank or Municipality Water supply
    • Use a submersible/monoblock pump to fill sump tank or overhead tank (as backup to first pump) from underground water sources
  • Want a complete integrated solution for your water automation need
  • Do not want to have multiple automation tools and juggle with integrating them together
  • Do not want to spend extra money for 2 controllers
  • Don't want to run wires from your tank sensors to the controller panel

Key Features (No Permanent WiFi/Internet Needed)

  • Automatic Start Motor-1: Turns on your motor-1 when the overhead tank water is low
  • Automatic Stop Motor-1: Turns off your motor-1 when the overhead tank is full
  • Automatic Start Motor-2: Turns on your motor-2 when the sump tank water is low
  • Automatic Stop Motor-2: Turns off your motor-2 when the sump tank is full, or when the overhead tank is full if the second motor is also used as a backup to fill the overhead tank.
  • Dry Run Protection 1: Stops your motor-1 if the sump tank water is low, protecting your motor
  • Dry Run Protection 2: Support Pipe/Flow Sensor to detect pipe dry run for Municipality water supply, protecting your motor
  • Manual Control: Easily switch your motor (Motor-1) on or off anytime
  • Power Protection: Guards against high voltage, low voltage, and overcurrent/overload
  • Clear Indicators: Shows sensor status and triggers for start and stop
  • Schedule & Timer: Set daily schedules or a countdown timer for automatic stopping
  • Energy Monitor: Track your daily power usage

Technical Specifications

  • Input Voltage : 230V
  • Max Current : 20A
  • Phase Support : Single-Phase
  • Motor Power 1: 0.5HP - 2HP (monoblock)
  • Motor Power 2: 1HP, 1.5HP, or 2HP (model-specific submersible)
  • Sensor Connectivity : Wireless / Wired (sump) + Wireless (overhead)
  • Display : Voltage & Current
  • Schedules : Guaranteed (No Internet Dependency)

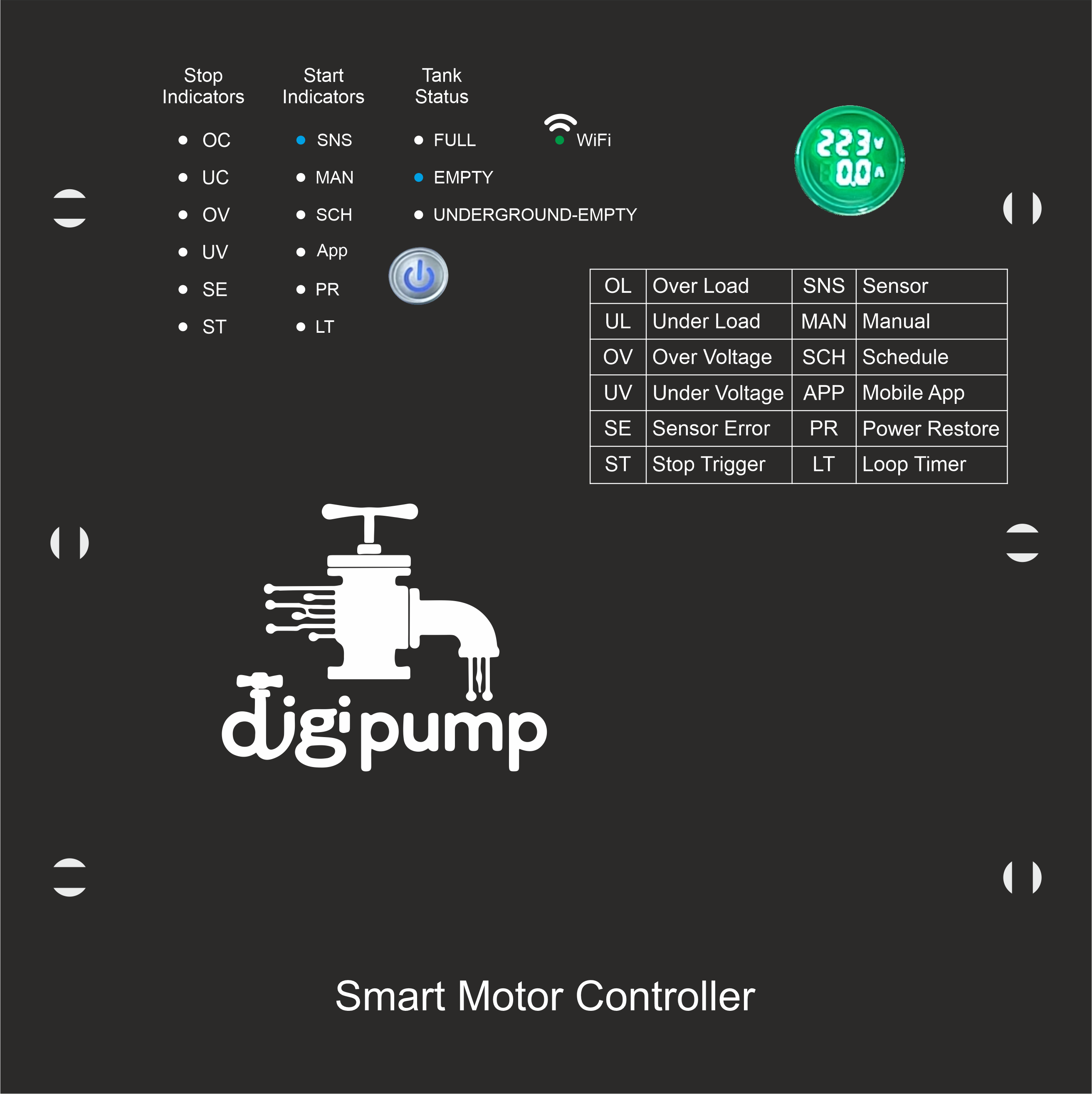

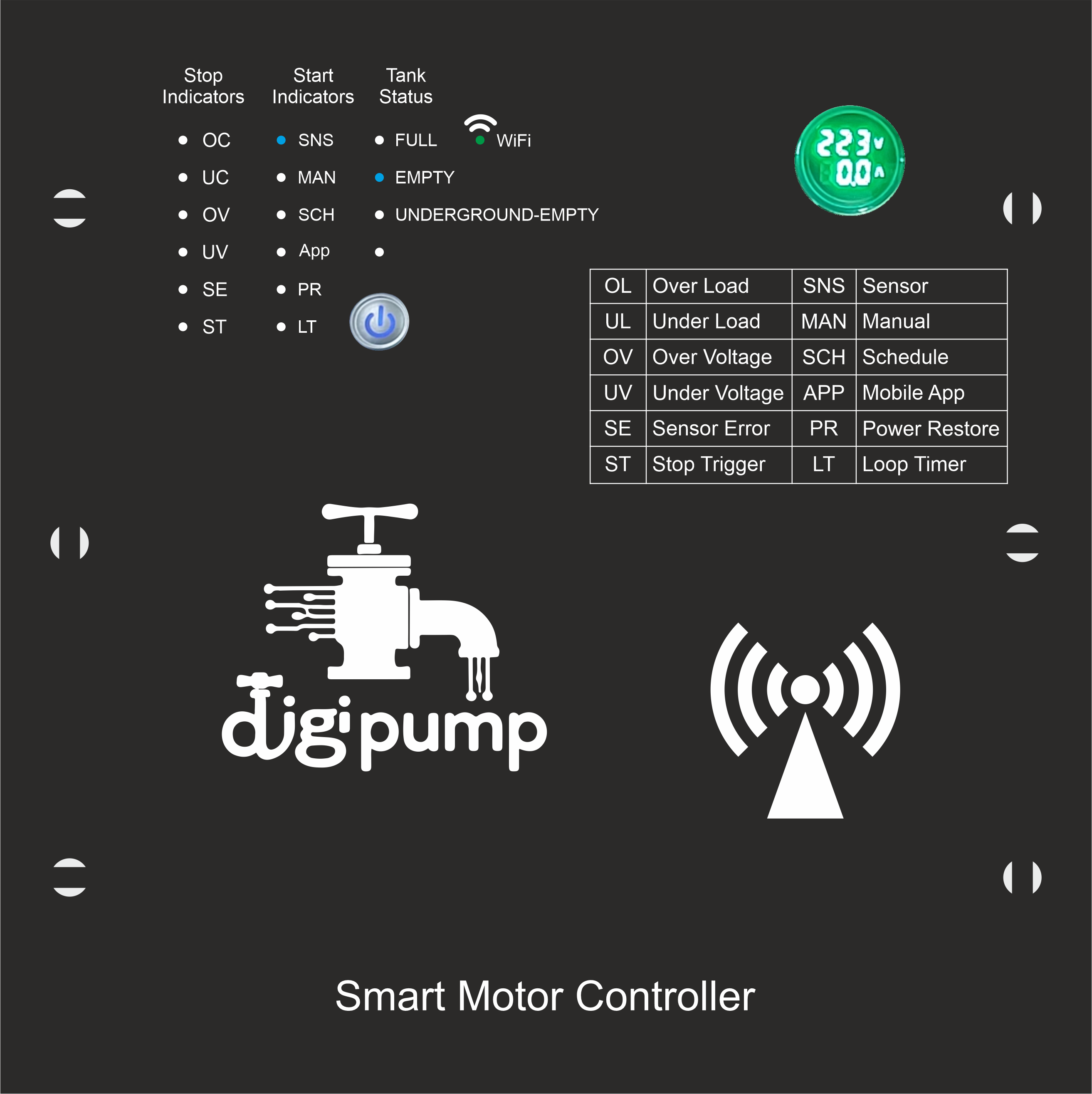

Smart Motor Controller for Submersible Pump (Wired)

Submersible Wired Sensor Starter Panel

Choose This If You:

  • Use a submersible pump to fill your overhead tank from groundwater or a sump
  • Are buying a new motor starter or replacing an old one
  • Prefer reliable wired sensors from your tank to the controller panel
  • Want to avoid wireless sensor maintenance (like battery replacement) and protect them from damage (e.g., by monkeys).
  • Prefer not to pay extra for wireless transmission

Key Features (No Permanent WiFi/Internet Needed)

  • Automatic Start: Turns on your motor when the overhead tank water is low
  • Automatic Stop: Turns off your motor when the overhead tank is full
  • Dry Run Protection: Stops your pump if the sump tank is empty, protecting your motor
  • Manual Control: Easily switch your motor on or off anytime
  • Power Protection: Guards against high voltage, low voltage, and overcurrent/overload
  • Clear Indicators: Shows sensor status and triggers for start and stop
  • Schedule & Timer: Set daily schedules or a countdown timer for automatic stopping
  • Energy Monitor: Track your daily power usage

Technical Specifications

  • Input Voltage : 230V
  • Max Current : 20A
  • Phase Support : Single-Phase
  • Motor Power : 1HP, 1.5HP, or 2HP (model-specific)
  • Display : Voltage & Current
  • Sensor Connectivity : Wired
  • Schedules : Guaranteed (No Internet Dependency)

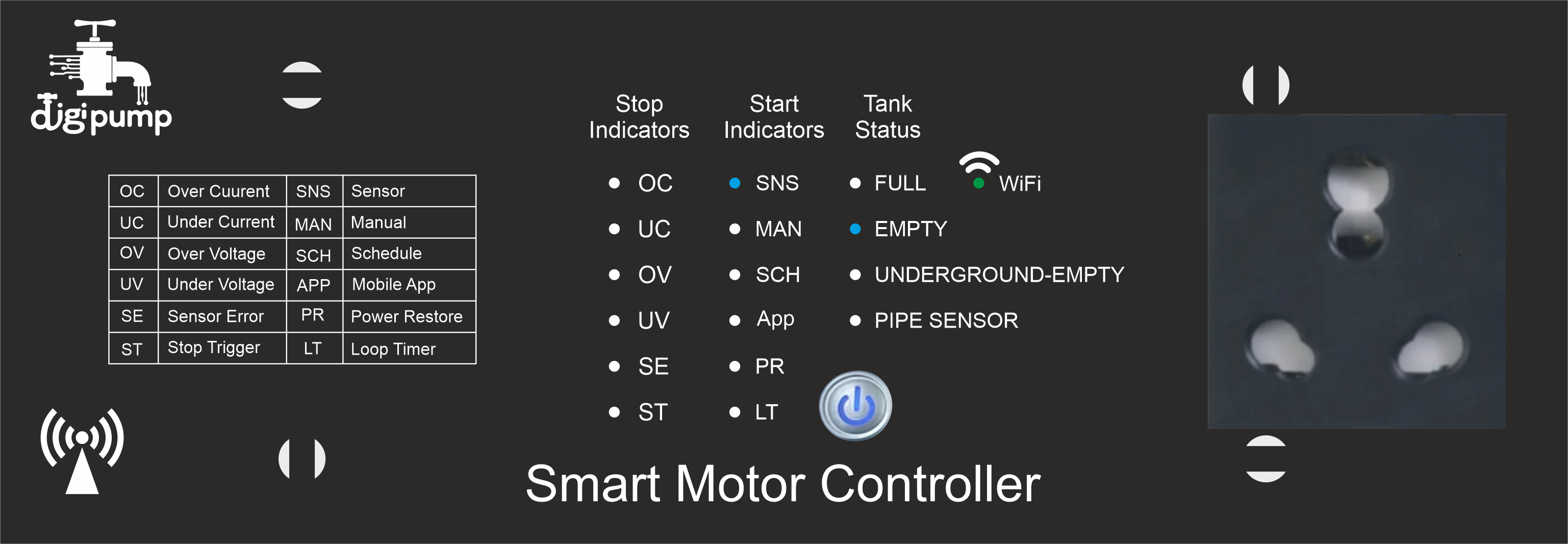

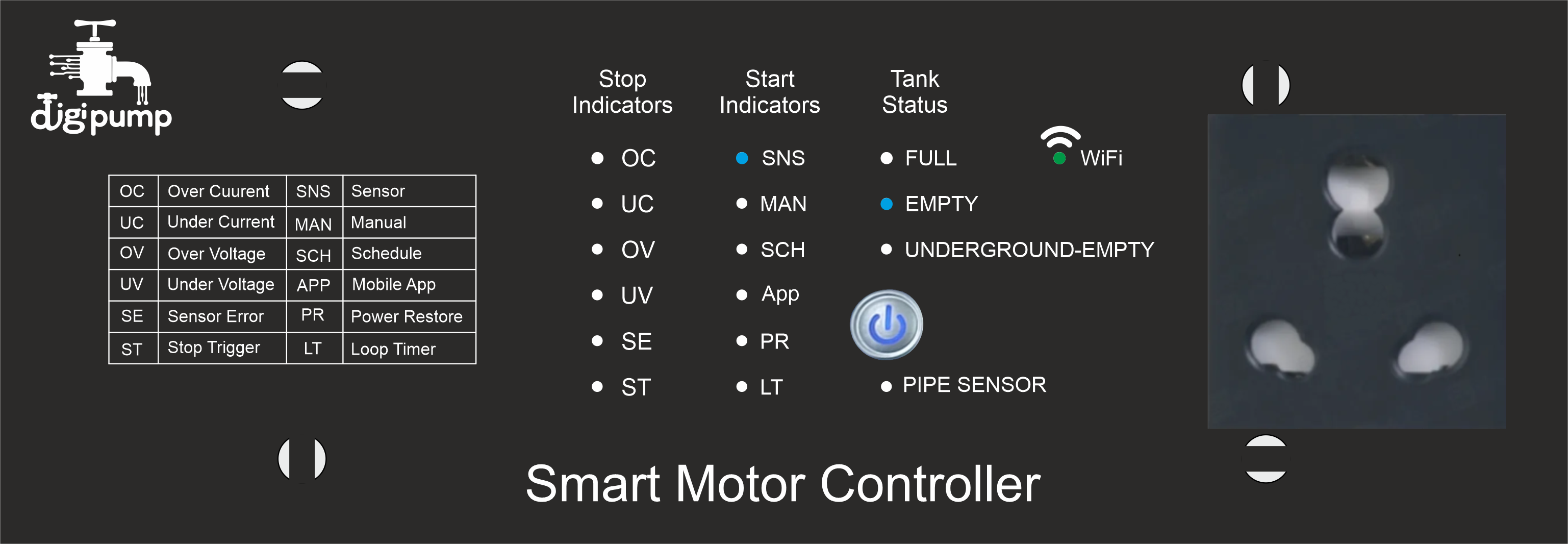

Smart Motor Controller for Monoblock Pump (Wired)

Monoblock Motor Pump Wired Sensor Starter Panel

Choose This If You:

  • Use a monoblock pump to fill your overhead tank from groundwater or a sump
  • Prefer reliable wired sensors from your tank to the controller panel
  • Want to avoid wireless sensor maintenance (like battery replacement) and protect them from damage (e.g., by monkeys).
  • Prefer not to pay extra for wireless transmission

Key Features (No Permanent WiFi/Internet Needed)

  • Automatic Start: Turns on your motor when the overhead tank water is low
  • Automatic Stop: Turns off your motor when the overhead tank is full
  • Dry Run Protection 1: Stops your pump if the sump tank is empty, protecting your motor
  • Dry Run Protection 2: Support Pipe/Flow Sensor to detect pipe dry run for Municipality water supply, protecting your motor
  • Manual Control: Easily switch your motor on or off anytime
  • Power Protection: Guards against high voltage, low voltage, and overcurrent/overload
  • Clear Indicators: Shows sensor status and triggers for start and stop
  • Schedule & Timer: Set daily schedules or a countdown timer for automatic stopping
  • Energy Monitor: Track your daily power usage

Technical Specifications

  • Input Voltage : 230V
  • Max Current : 20A
  • Phase Support : Single-Phase
  • Motor Power : 0.5 HP - 2.0 HP
  • Sensor Connectivity : Wireless
  • Schedules : Guaranteed (No Internet Dependency)

Smart Motor Controller for Submersible Pump (Wireless)

Submersible Water Pump Wireless Sensor Starter Panel

Choose This If You:

  • Use a submersible pump to fill your overhead tank from groundwater or a sump
  • Are buying a new motor starter or replacing an old one
  • Don't want to run wires from your tank sensors to the controller panel

Key Features (No Permanent WiFi/Internet Needed)

  • Automatic Start: Turns on your motor when the overhead tank water is low
  • Automatic Stop: Turns off your motor when the overhead tank is full
  • Dry Run Protection: Stops your pump if the sump tank is empty, protecting your motor
  • Manual Control: Easily switch your motor on or off anytime
  • Power Protection: Guards against high voltage, low voltage, and overcurrent/overload
  • Clear Indicators: Shows sensor status and triggers for start and stop
  • Schedule & Timer: Set daily schedules or a countdown timer for automatic stopping
  • Energy Monitor: Track your daily power usage

Technical Specifications

  • Input Voltage : 230V
  • Max Current : 20A
  • Phase Support : Single-Phase
  • Motor Power : 1HP, 1.5HP, or 2HP (model-specific)
  • Sensor Connectivity : Wireless
  • Schedules : Guaranteed (No Internet Dependency)

Smart Motor Controller for Monoblock Pump (Wireless)

Submersible Water Pump Wireless Sensor Starter Panel

Choose This If You:

  • Use a monoblock pump to fill your overhead tank from groundwater or a sump
  • Don't want to run wires from your tank sensors to the controller panel

Key Features (No Permanent WiFi/Internet Needed)

  • Automatic Start: Turns on your motor when the overhead tank water is low
  • Automatic Stop: Turns off your motor when the overhead tank is full
  • Dry Run Protection 1: Stops your pump if the sump tank is empty, protecting your motor
  • Dry Run Protection 2: Support Pipe/Flow Sensor to detect pipe dry run for Municipality water supply, protecting your motor
  • Manual Control: Easily switch your motor on or off anytime
  • Power Protection: Guards against high voltage, low voltage, and overcurrent/overload
  • Clear Indicators: Shows sensor status and triggers for start and stop
  • Schedule & Timer: Set daily schedules or a countdown timer for automatic stopping
  • Energy Monitor: Track your daily power usage

Technical Specifications

  • Input Voltage : 230V
  • Max Current : 20A
  • Phase Support : Single-Phase
  • Motor Power : 0.5 HP - 2.0 HP
  • Sensor Connectivity : Wireless / Wired (sump) + Wireless (overhead)
  • Schedules : Guaranteed (No Internet Dependency)

Smart Retrofit Motor Controller Adding Smart Capabilities to Traditional Starters (Wireless)

Submersible Water Pump Wireless Sensor Starter Panel

Choose This If You:

  • Use a submersible pump to fill your overhead tank or a sump tank
  • Want to use Existing Single-Phase Starter Panel and make that panel smart
  • Want to use Existing 3-phase DOL Starter Panel and make that panel smart for agricultural use
  • Want to use Existing 3-phase Star Delta Starter Panel and make that panel smart for agricultural use
  • Don't want to run wires from your tank sensors to the controller panel

Key Features (No Permanent WiFi/Internet Needed)

  • Automatic Start: Turns on your motor when the overhead tank water is low
  • Automatic Stop: Turns off your motor when the overhead tank is full
  • Dry Run Protection: Stops your pump if the sump tank is empty, protecting your motor
  • Manual Control: Easily switch your motor on or off anytime
  • Power Protection: Guards against high voltage, low voltage, and overcurrent/overload
  • Clear Indicators: Shows sensor status and triggers for start and stop
  • Schedule & Timer: Set daily schedules or a countdown timer for automatic stopping

Technical Specifications

  • Input Voltage : 230V
  • Max Current (Single-Phase): 20A
  • Max Current (3-phase): As supported by your existing panel
  • Phase Support : Single-Phase & 3-phase
  • Motor Power (Single-Phase) : 0.5 HP - 2.0 HP
  • Motor Power (3-phase) : Power supported by your existing panel
  • Sensor Connectivity : Wireless
  • Schedules : Guaranteed (No Internet Dependency)

Find Us in the Digital Breeze!

"Don't miss out! For exclusive access to our latest installation guides, insightful use case deep-dives, detailed wiring videos, and live Q&A sessions, connect with us on our social media channels. Your journey to effortless water management starts here!

Digipump vision and mission

About

Born from the Smarteefi IoT Platform, Digipump is our specialized answer to residential water automation. We saw the widespread demand for smarter water management and built a dedicated team to create comprehensive, use-case specific solutions for every water pump scenario.



Vision

To ensure constant water availability in every tank while eliminating water wastage through state-of-the-art automation.



Mission

To equip every home with a Digipump solution, providing tailored water automation for all residential needs.

Reach Out, Let's Connect

Ready to embrace effortless living with Digipump? Have a question, or simply want to chat about effortless living? Send us a message, and we'll be delighted to help you on your journey.

Email: info@coreembedded.com

Phone: +91 98116 82214

WhatsApp (Sales): +91 98116 82214 (Chat Now)

WhatsApp(Tech Support): +91 81303 45141 (Chat Now)

Address: C31 Second Floor, Sector 13,
                Vasundhara, Ghaziabad,
                Uttar Pradesh, India - 201012
